QR Capabilities
Quality Dept.
Our Lathe Dept. has the Ability to turn to 22.5" Diameter x 44" Long through hole
Our Lathe Dept. has the Ability to turn to 22.5" Diameter x 44" Long through hole
Mitutoyo Crysta Apex 7106
XYZ Range(mm): 700 x 1000 x 600
MCOSMOS v3.5 Software
8700 Vision System
Z-Axis Measuring System: 6"
Resolution: .00005”
4” x 8” Travel
M3 VED Software
Mitutoyo QM-Height Gage
QMH: 24”
Measuring range: 0-24”
Resolution" .00005” / .0001”
Granite Surface Plates
48” x 36”
36” x 24”
Quality department is in controlled climate room with miscellaneous support equipment
Calipers, micrometers, thread gauges, bore gauges, deltronic pins, etc.
Our Lathe Dept. has the Ability to turn to 22.5" Diameter x 44" Long through hole
Our Lathe Dept. has the Ability to turn to 22.5" Diameter x 44" Long through hole
Our Lathe Dept. has the Ability to turn to 22.5" Diameter x 44" Long through hole
Doosan Puma 300MC (2014)
Live Tooling
4” Through hole
12” Chuck
Tail Stock
Mori Seiki ZL-25
Dual Turret
2.625 Dia. Bar Capacity
10” Chuck
Tail Stock
Mori Seiki ZL-15S
Twin Turret / Twin Spindle
1.625 Dia. Bar Capacity
6” Chuck & 3J Collet holder (main spindle)
5C Collet holder 2nd spindle
Mori Seiki AL-2
2.2” Dia. Bar Capacity
8” 3-Jaw Chuck & 5C Collet holder
Tail Stock

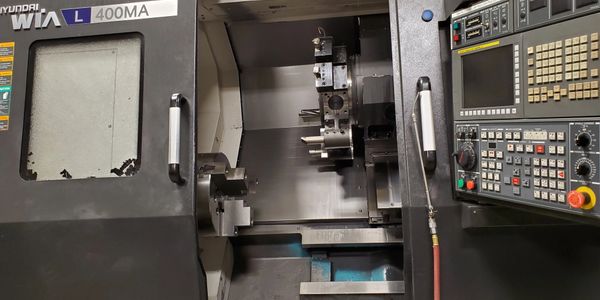

Hyundia-Wai L400MA
40 HP
Mill turret 10 hp
Swing 30.7" max turn length 46.5" max cutting dia. 22.4"
X Travel: 12.8" Z Travel: 47.4"
Our Mill Dept. can mill parts that fit within a 30" x 30" x 80" window with ability to stage longer
Our Mill Dept. can mill parts that fit within a 30" x 30" x 80" window with ability to stage longer
Our Mill Dept. can mill parts that fit within a 30" x 30" x 80" window with ability to stage longer
Doosan 650 II
CNC 4 Axis Vertical
12’000 RPM
Table: 51.2” x 26.4”
Travel (xyz): 50” x 26.4” x 24.6”

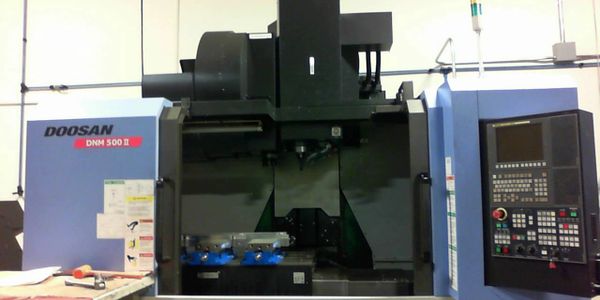

Doosan 500 II
CNC 3 Axis Vertical
12,000 RPM
Table: 47.2” x 21.2”
Travel (xyz): 40” x 21.2” x 20.1”
Doosan 500
CNC 4 Axis Vertical
8,000 RPM
Table: 47.24” x 21.26”
Travel (xyz): 40.16” x 21.26” x 20.08”
Doosan DNM5700
CNC 4 Axis Vertical
12,000 RPM
Travel (xyz): 41.33" x 22.44" x 20.08"
Mori Seiki Jr (3)
CNC 3 Axis Vertical
6,000 RPM
Table: 35.4” x 16.1”
Travel (xyz): 22” x 16.1” x 18.1”
Mori Seiki MV-45/40 (2)
CNC 3 Axis Vertical
6,000 RPM
Table: 43” x 18”
Travel (xyz): 30” x 17” x 19”
Support Equipment
Our Mill Dept. can mill parts that fit within a 30" x 30" x 80" window with ability to stage longer
Our Mill Dept. can mill parts that fit within a 30" x 30" x 80" window with ability to stage longer

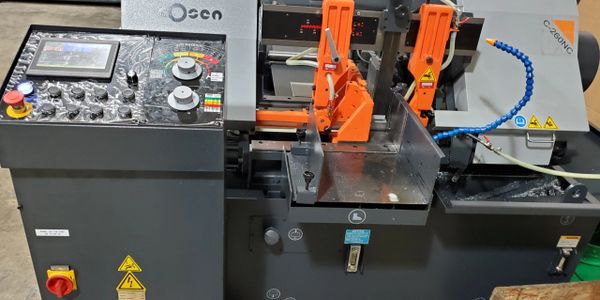

Cosen C260NC Horizontal Pivot Band Saw
Amanda 48” Shear
Sunnen Hone
Wyson 20 Ton Press Break
3 Bench Grinders
Delta Drill Press
Turn Pro 7” Metal Cutting Band
Saw
Bradford Bolt & Disc Sander
Bradford – Bridge Port
Washita – Horizontal Manual Mill
Programming with both Master-Cam and Gibbs-Cam
